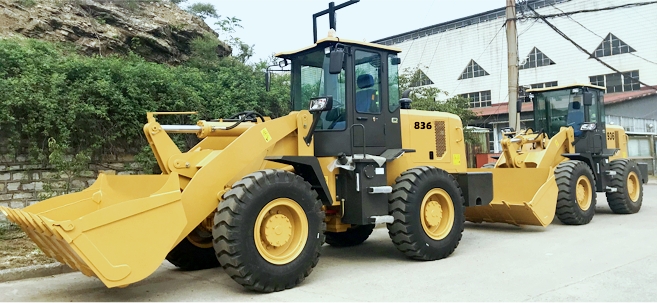

3 ton wheel loader

2

整机重量        overall weight

9600kg

3

额定斗容量      rated bucket capacity

1.8m3

4

最大牵引力      maximum tractive force

97KN

5

最大崛起力      maximum breakout force

127KN

6

最大爬坡能力    maximum grade ability

30℃

7

最大卸载高度    maximum dump height

3100mm

8

最大卸载距离    maximum dump reach

1006mm

9

整机外形尺寸    overall dimension (L×W×H)

6890×2430×3070mm

10

最小转弯半径    minimum turning radius

5097mm

发动机Engine

11

型号model

道依茨Deutz  WP6G125E22

12

型式type

lnline water cooled, four stroke

13

气缸数-缸径×行程No. of   cylinder-bore/stroke

6—108×125mm

14

额定功率        rated power

92kw

15

最大扭矩        maximum torque

500N.m

16

最低燃油消耗率  min fuel-consume ratio

≤210g/kw.h

18

变速箱型式      gearbox mode

定轴常啮合式 Power shift normally   engaged straight gear

19

档位数          gear shift

前进档四个，倒退档二个4forward shift  2 reverse shift

20

最高车速        maximum speed

40km/h

驱动桥Drive   axles

21

主传动型式：    main reducing mode

螺旋伞齿轮一级减速式Bevel gear grade lreduction

22

轮边减速型式    decelerating mode

一级行星减速Bevel gear grade lreduction

23

轴距            wheel base (mm)

2660mm

24

轮距            wheel tread

1800mm

25

最小离地间隙    ground clearance

400mm

27

动臂提升时间    boom lifting time

4.83s

28

三项和          total time

9.15s±0.5s

29

油箱容量        fuel tank capacity

156L

30

铲斗自动放平功能function of leveling automatically

有 yes

制动系统Brake   system

31

行车制动        service brake

气顶油钳盘式四轮制动air assist disc brake   on 4 wheels

32

驻车制动        parking brake

手动钳盘式制动Manual disk brake

轮胎Tyre

33

规格            type specification

17.5-25

34

前轮气压        front tyre pressure

0.4Mpa

35

后轮气压        rear tyre pressure

0.35Mpa
